Standalone Controller

Key Features

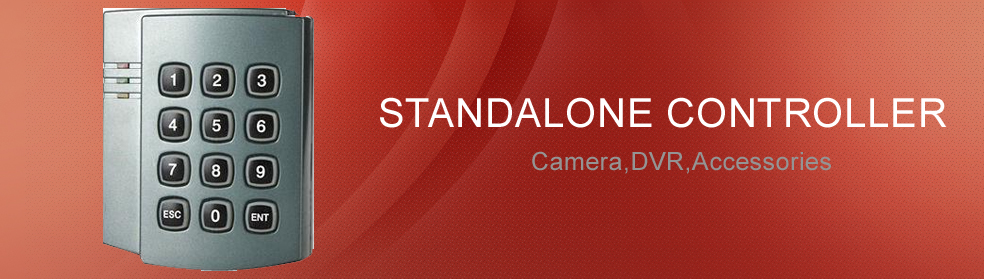

Intelligate the stand alone card based access controller works on various card reading technologies and is designed to cater simpler needs of small and medium sized organizations. It has compact dimensions with sleek aesthetics. It supports Mifare & RFID Auto ID technologies. Intelligate is also available with inbuilt HID prox and iClass readers
• Embedded Ethernet network interface for high speed connectivitytra
• Simple operations with easy installation procedure
• Small & compact design with sleek aesthetics

Overview

  • Boasts of compact and high on aesthetics design suitable for both access control as well as attendance recording.
  • Supports all latest RFID technologies with inbuilt EM reader and option of having Mifare/HID iClass/HID Prox.
  • The system supports multiple card formats including HID Prox & HID iClass. It also supports 13.56 Mhz Mifare credentials for CSN as well as sector reading.
  • Leveraging on the merits of IP based systems, it can easily be hooked up on the existing TCP/IP network. Thus the data can be transferred instantaneously in real time mode to a centralized server.
  • Facility to onsite upgrade the firmware over Ethernet interface so that any customization or new version can be easily upgraded without any need of removing the device.
  • Door wise anti pass back. Entry to the particular door is allowed only when the employee has exited through the same door.
  • Facility of door interlocking is available. The system allows creating a group of doors such that access to a door within the group is allowed only when all the other doors are in closed condition.

Specifications -- StandAlone

Specifications: Hardware

CPU 8 Bit Micro controller running at 42 MHz
Program Memory 128 Kbytes
Data Memory 2Mbytes flash
Reader Support Inbuilt proximity reader (optional Mifare reader /HID Prox/HID iClass) for 1:1 match
Database 30,000 Card Holders database storage.
Transactions 55,000 time stamped events storage capacity
RTC Non Volatile Real Time Clock Calendar, Data retention for more than 10 years without external power
Display 16 Character x 2 Line high contrast back lit LCD, LED indication for verification result
LED Red & Green LED for pass/ fail indication
Keypad 12 Keys Membrane keypad for local programming and PIN Entry
Communication 10 Base-T RJ45 Ethernet interface (TCP/IP) with status LED indications
Reader Interface Weigand configurable from 26 bits to 40 bits / Clock Data
Lock/Siren Interface 1 Potential Free changeover relay, contact rating 3A/30VDC, supports both fail safe and fail secure type of lock assemblies
Aux Reader Port One reader port is available for exit weigand or clock/data reader
Digital Inputs 1 input for exit switch, 1 input for door sensor and 1 general purpose programmable input.
Digital Output 1 general purpose TTL output for alarm
Watchdog Built-in watchdog supervisor
Supply Requirement 12VDC / 1A Switch mode supply
Power Less than 5 watt
Enclosure Plastic housing with sleek aesthetics
Humidity RH 5~95% Non-condensing
Weight 0.32 Kg
Dimensions 13.2 cm ( L) x 11.0 cm (W) x 3.5 cm (D)

Specifications: Firmware

Time Zone 30 user defined time zones
Access Groups 90 Access Groups
Day Access Day of the week access
Week off groups 30 Week off groups
Holiday groups 10 Holiday groups, 30 holidays per group
Message Display Provision to display individual as well as global message
Anti pass back Door wise anti pass back
Door interlocking Door interlocking facility available
Key Features
VertX EVO™ V2000 is a two-reader access control panel that enables interface with two doors (single reader) or one door (in/out reading).
The EVO V2000 handles all online door decisions, door input monitoring and output control and reader interface for up to two doors. The solution has two inputs per door for door monitor and REX, and two outputs per door for lock and AUX.
VertX EVO V2000 also includes three inputs for AC power fail, Battery power fail and Tamper, and is powered by a local power supply (12 or 24 VDC).

Overview

  • Provides a complete and fully functional hardware/firmware infrastructure for access control software host systems.
  • Enables the replacement of head end software without visiting the access control panel, reducing change out costs.
  • Stores a complete access control and configuration database for up to 2 Reader Interfaces (up to 2 doors) and 250,000 cardholders.
  • Connects to the host and other devices on a TCP/IP network.
  • Receives and processes real-time commands from the host software application.
  • Reports all activity to the host; reports supervised inputs /alarms with 255 priorities.
  • Provides fully functional offline operation when not actively communicating with the host access control software application, performing all access decisions and event logging.
  • Interface for two Wiegand or Clock-and-Data readers; inputs for 2 door monitors, 2 REX switches, AC fail, Battery fail and Tamper.
  • Non-latching relay outputs rated 2 A @ 30 VDC
  • 1) 2 door strikes (configurable)
  • 2) 2 auxiliary devices (door held/forced alarm, alarm shunt, host offline (communication down),or general purpose)

Specification - V2000 Reader Interface/Networked Controller

Model (and Part #):EVO V2000 (72000BEP0N01A)

Mounting: Mount to any wall surface, using four screws. For UL compliance, one or more gateways can be mounted inside a locking customer supplied NEMA-4 rated enclosure

Dimensions: 5.8" W x 4.825" H x 1.275" D (147.32 mm x 122.55 mm x 32.38 mm)

Weight: 12.4 oz (.35 kg)

Operating Temperature: 32° to 120° F (0° to 49° C)

Operating Humidity: 5% to 85% relative, non-condensing

Communication Ports: Ethernet (10/100)

Warranty: Warrantied against defects in materials and workmanship for 18 months (See complete warranty policy for details).

Operating Current (MAX) @ 12-24VDC: 1000mA

Operating Current (AVG) @ 12VDC: 625mA (with 2 iCLASS Readers)

Supervised Inputs Power (MAX): 0.025W (5mA sink, 5V nominal) 0 to +5VCD Ref

Wiegand / C&D Reader: 12VDC, 250mA each

Relay Outputs: 30VDC, 2Amp, resistive
